What Are ANSI Lumens? A Complete Guide to Projector Brightness

In the projector industry, "lumens" is one of the most confusing specifications for buyers. Because different brands use different brightness testing methods, two projectors listing the exact same lumen value can perform very differently in real life. For buyers and distributors explaining product specs to clients or platforms, understanding what ANSI lumens actually means is the first step to avoiding returns and negative reviews.

What is ANSI Lumens?

ANSI lumens is a brightness measurement method established by the American National Standards Institute. It does not measure the light output directly from the light source itself, but rather the actual brightness displayed on the screen after projection.

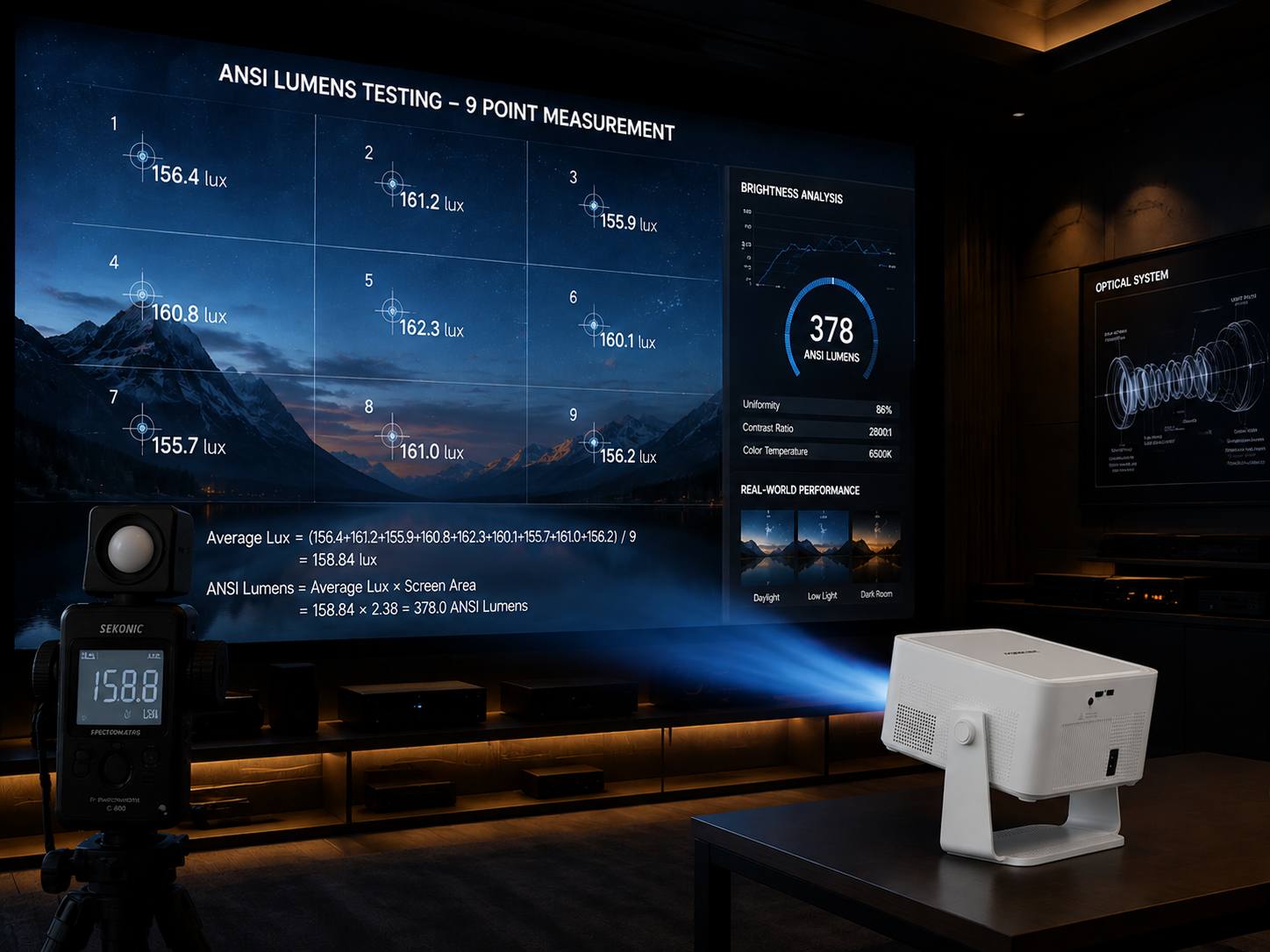

The test uses a specific "9‑point measurement method": the projected image is divided evenly into 9 test points, light meter readings are taken at each point, and the average is calculated. This measures the final light reaching the screen after passing through the entire optical system (lenses, prisms, LCD panels, etc.) and accounting for light loss, rather than the raw output of the light source. This is why ANSI lumens is widely considered the unit that best reflects real‑world viewing conditions.

It is worth noting that a projector's actual brightness fluctuates based on operating modes (Standard vs. Eco), color temperature settings, and lens position. Manufacturers typically list the peak ANSI lumen value measured under specific conditions: "Maximum Brightness Mode + Wide Angle Lens Position."

What is the Difference Between Lumens and ANSI Lumens?

"Lumens" and "ANSI lumens" are not the same concept.

• Lumens: A broad unit of luminous flux. Theoretically, it can refer to the total light emitted by a light source or a value measured at any stage in the system. It lacks standardized test conditions or third‑party verification, allowing manufacturers to define how and where they measure it.
• ANSI Lumens: Follows strict testing standards (the 9‑point method) and defined testing conditions (projected image, specific brightness mode). It is the recognized standard across the industry and review outlets for direct, side‑by‑side comparisons.

In short, plain "lumens" can easily be inflated, while "ANSI lumens" serves as a universal standard. Review sites and reputable brands specifically highlight the "ANSI" prefix in spec sheets—lumen claims without this prefix carry little reference value.

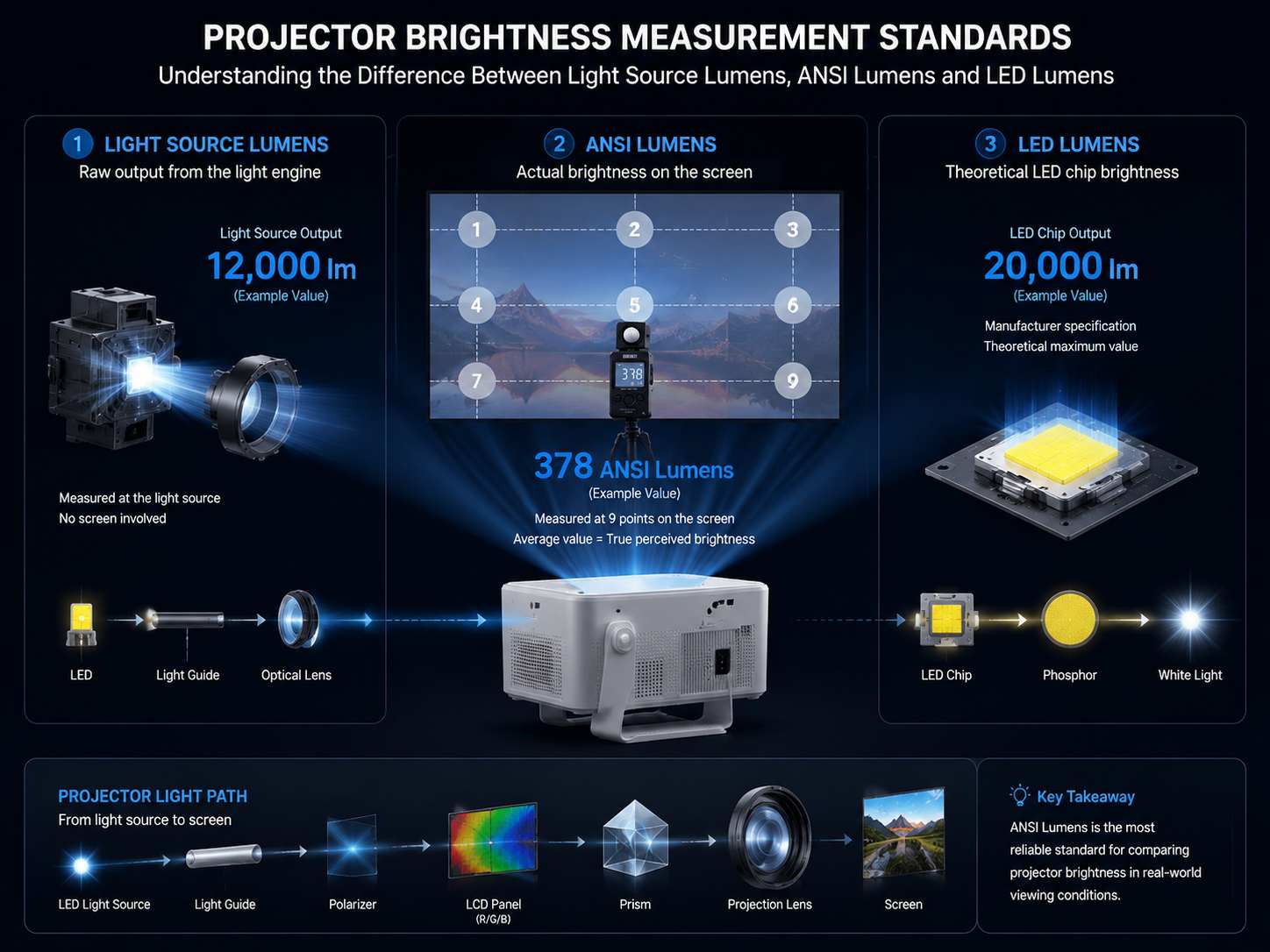

What is the Difference Between ANSI, LED, and Light Source Lumens?

In addition to ANSI lumens, terms like "LED lumens" and "Light Source lumens" are often used in marketing. While they sound professional, they mean very different things.

Calculation Differences

ANSI / ISO / CVIA: Uses 9‑point screen measurement to calculate an average, focusing directly on the projected image.

LED / Light Source Lumens: Typically cites raw component specs from the light source supplier without factoring in optical efficiency loss, using non‑transparent calculation methods.

Conversion Relationships

ANSI lumens and ISO lumens follow a rough conversion ratio commonly cited around 1 : 0.8 (meaning 2000 ANSI lumens is roughly equal to 1600 ISO lumens). Some tests show slight variations—such as ANSI lumens measuring about 4.5% higher than ISO—depending on equipment and testing environments. Overall, both provide trustworthy, comparable brightness figures.

However, there is no standardized formula to convert "LED lumens" to ANSI lumens. Because they measure two completely different physical points (light source vs. screen image), the gap can range anywhere from 20% to over 50% depending on the efficiency of the optical system. This explains why a projector labeled "3000 LED Lumens" can look dimmer than one labeled "2000 ANSI Lumens"—it is not necessarily false advertising, but rather two numbers measured on completely different scales.

Impact on Image Quality

An accurate ANSI lumen rating directly impacts brightness and color performance. If a projector lacks sufficient real‑world brightness under ambient light, the picture appears washed out, faded, and flat. This is often the root cause when users complain about "color distortion"—the issue is rarely color management, but rather an insufficient baseline brightness.

Key Performance Metrics: How Many ANSI Lumens Do You Need for Different Settings?

Higher brightness is not always better; it must match the light conditions of your environment:

• Bedroom (Nighttime, Fully Dark): Lighting is easiest to control here. 300–600 ANSI lumens paired with a screen size under 100 inches delivers a clear image. Excessive brightness on a small screen in close quarters can cause eye strain and glare.
• Home Theater (Dedicated Darkroom, 100–120"): In a fully light‑controlled room, 800–2000 ANSI lumens provides high‑contrast images on a 100–120 inch screen. This is the standard range for home theater setups.
• Living Room (Low Ambient Light / Lamps On): If ambient light is present during the day, we recommend at least 1000 ANSI lumens paired with an Ambient Light Rejecting (ALR) screen. For bright living rooms, target 2000 ANSI lumens or higher.
• Meeting Rooms / Classrooms (Daytime, Window Light / Overhead Lights): Brightness requirements jump significantly in these settings. 3000–5000 ANSI lumens suits medium‑to‑small meeting rooms or classrooms. For larger spaces or harsh lighting, aim for 5000+ ANSI lumens.
• Outdoor Cinema (Varies by Time of Day): Outdoor environments are the most demanding:
  • Pitch‑black night / Backyard with no extra light: 500–1000 ANSI lumens works well.
  • Nighttime with mild light pollution (e.g., streetlights): Recommend 2000–2500 ANSI lumens.
  • Dusk / Twilight: Requirements jump to 3000+ ANSI lumens.
  • Shaded daytime: Requires at least 3500–4000 ANSI lumens paired with an ALR screen (though performance will still lag behind nighttime viewing).
  • Large outdoor events (16ft+ screens): Requires 6000+ ANSI lumens to maintain clear visibility.

Note that as screen size increases, required brightness does not scale linearly. Because projected light spreads over a larger area, light intensity per unit area drops. Larger screen setups require higher ANSI lumens or a high‑gain screen to maintain clarity, contrast, and color quality. When choosing a projector, evaluate screen size, viewing environment, and screen material alongside ANSI lumens.

What Other Factors Affect Image Quality Besides ANSI Lumens?

Brightness is only one dimension of picture quality. Two projectors with identical ANSI lumens can produce very different results due to other overlapping factors:

• Resolution: Determines sharpness and fine details. Native 1080p projectors look noticeably sharper than "4K/8K input supported" models with lower native resolution. Always distinguish between Native Resolution and Supported Input Resolution.
• Contrast Ratio: Higher contrast improves dynamic range and black levels. Even at the same ANSI brightness, low‑contrast models look flat and gray.
• Optical System & Light Source Quality: Lens transmittance and optical engine design dictate how efficiently raw light converts into usable screen brightness.
• Ambient Light: Strong ambient light dilutes image contrast regardless of projector specs. This is why professional guides usually recommend specific screen pairings alongside brightness specs.
• Throw Distance & Screen Size: Greater throw distances and larger images spread light over a bigger area, diluting unit‑area brightness.

How to Choose the Right Projector Based on ANSI Lumens

Follow these steps rather than simply picking the highest number:

• Identify the Usage Scenario: Bedroom, living room, office, or outdoors—your environment defines your minimum brightness needs.
• Assess Ambient Light: A dark room and a brightly lit space require vastly different brightness levels for the same screen size.
• Check Screen Size and Throw Distance: Larger screens and longer distances require extra brightness overhead. Do not buy right at the minimum requirement.
• Verify the Spec Label: Ensure the spec sheet explicitly states "ANSI Lumens." If it only lists "Lumens" or "LED Lumens," ask for third‑party test reports or ANSI/ISO certification proof.
• Balance Your Budget: Extra brightness beyond your actual needs adds unnecessary cost and can cause glare in dark environments. Allocate budget across resolution, contrast, and cooling noise as well.

How We Ensure Authentic ANSI Lumens as a Manufacturer

As the manufacturer behind the Magcubic brand, Hanying focuses on smart projector R&D and manufacturing. We maintain strict standards across brightness testing, optical engineering, and mass‑production quality control. Our lumen standards are backed by three pillars:

• Standardized Testing Procedures: We follow the industry‑standard 9‑point testing method under consistent parameters (fixed color temperature and brightness modes), avoiding the practice of misrepresenting temporary peak‑mode figures as standard performance.
• Mass‑Production Consistency Control: We ensure stable brightness outputs across mass production runs. This aligns with ISO 21118 rules, which require mass‑produced units to output at least 80% of their advertised rating—a crucial metric for wholesale buyers and distributors.
• Traceable Certifications & Production Lines: Our facilities hold ISO9001 quality management, BSCI social compliance, and regional certifications (CE, FCC). Third‑party audits confirm our optical designs, raw materials, and quality inspection workflows, giving OEM/ODM partners verifiable product quality.

Frequently Asked Questions (FAQ)

How bright is 1000 ANSI Lumens?

1000 ANSI lumens is a solid mid‑to‑high brightness level for home use. It maintains a clear picture on a 100‑inch screen in a living room with moderate ambient light, especially when paired with an ALR screen. However, it will struggle under direct daytime sunlight.

Why are ANSI Lumens important for projectors?

It is currently the only widely accepted brightness metric with standardized testing rules that allows fair side‑by‑side comparisons across brands. Non‑ANSI lumen labels lack transparent testing conditions and often lead to "great on paper, dim in reality" customer dissatisfaction.

How do ANSI Lumens affect image quality?

Insufficient brightness causes image contrast to collapse under ambient light, making colors look washed out and dull. True, sufficient ANSI lumens provide the necessary foundation for vibrant colors and rich contrast, though overall performance still depends on contrast ratios and optical quality.

How many lumens do I need for a home projector?

For small screens in dark rooms, 300–500 ANSI lumens is sufficient. For living rooms with ambient lighting, target 800+ ANSI lumens. As screen size and room light increase, scale up brightness accordingly and consider using an ALR screen.

Does projector brightness degrade over time?

Yes. All light sources (lamp, LED, or laser) experience natural brightness decay over time. LEDs degrade gradually rather than failing suddenly. The industry standard "L70" metric marks the operational hours required for brightness to drop to 70% of its original output. High‑brightness modes and excessive heat accelerate decay, while efficient cooling designs and balanced power modes help extend product lifespan.

Is higher ANSI lumens always better?

No. Brightness should match your room and screen size. Overly bright projectors in dark rooms ruin black levels and raise costs needlessly.

Summary

ANSI lumens is the most reliable metric for evaluating real‑world projector brightness, but it is not the sole factor determining overall picture quality. Resolution, contrast ratio, optical components, and viewing environment must all be considered together.

Whether you are an end consumer or a commercial distributor, focusing on standardized, verifiable brightness specs—rather than chasing inflated numbers—is the key to securing superior viewing experiences and long‑term product value.
